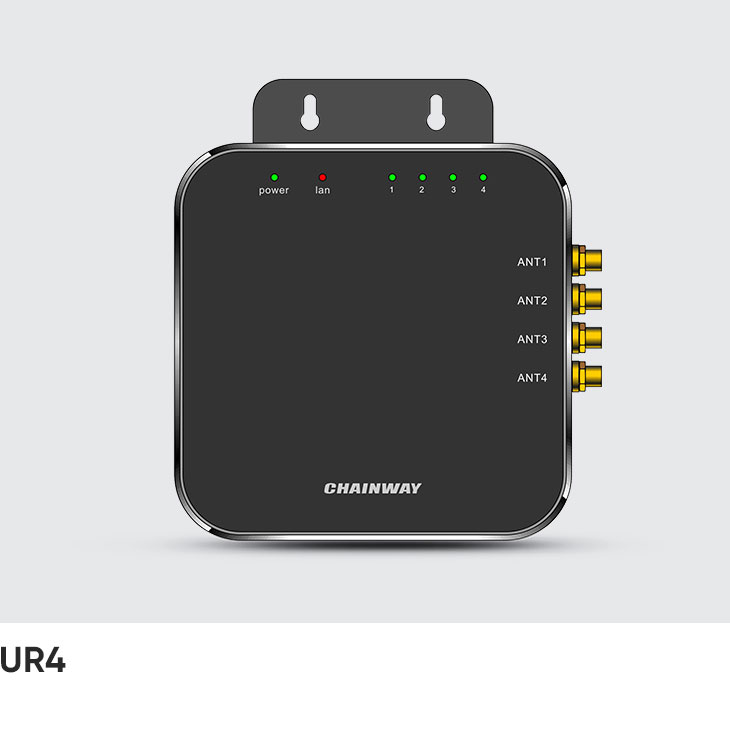

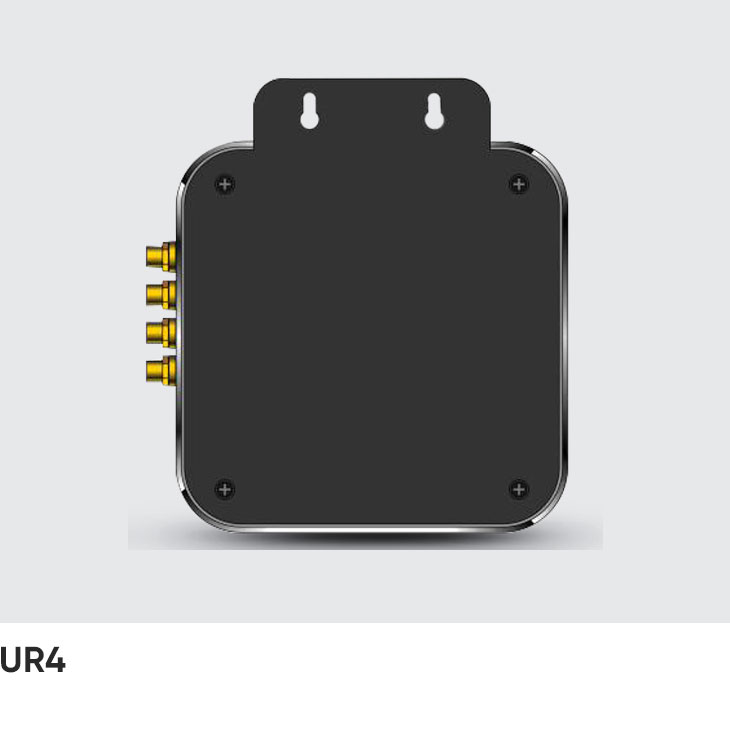

SPECIFICATIONS
Physical Characteristics
Dimensions 102.8 mm(L) x 102.8 mm(W) x 28 mm(H)
Weight 329 g / 11.6 oz.(without antenna)
Material Aluminium alloy
Input Voltage DC 9V – 12V
Standby Current < 30mA
Comm Interface RS-232 / RJ45
GPIO 2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)
Baud Rate 115200 bps
Cooling Mode Air cooling
Work Current 800mA +/-5% @ DC 12V Input
Ethernet interface 10/100 Base-T Ethernet (RJ45)
Power Supply POE (802.3af 13W) (Optional)
POE+ (802.3at 25.5W) (Optional)
Developing Environment
SDK Windows, Linux, Android
User Environment
Operating Temp. -25 °C to 65 °C
Storage Temp. -40 °C to 85 °C
Humidity 10%- 95%
UHF RFID
Engine CM710-4 module based on Impinj E710
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X Supported
Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power 1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
Output Power Precision +/- 1dB
Output Power Flatness +/- 0.2dB
Receive Sensitivity < -84 dBm
RSSI Supported
Ambient Temp Monitor Supported
Fastest Read Rate 900+ tags/sec
Antenna Detector Supported
Antenna Port 4 channel 50Ω SMA port
