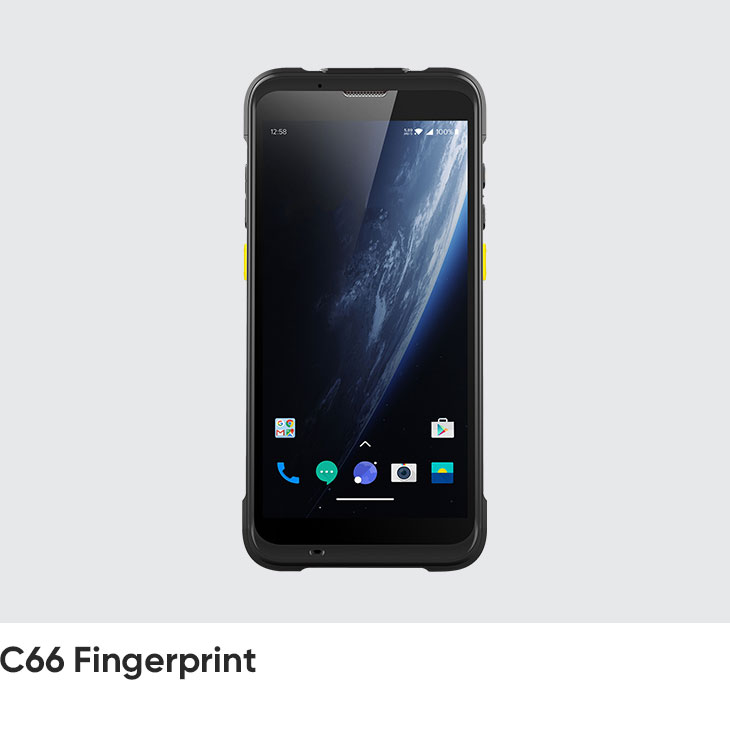

SPECIFICATIONS
Physical Characteristics
Dimensions 160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
Weight 297 g / 10.47 oz. (device with battery)
Display 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Touch Panel Multi-touch panel, gloves and wet hands supported
Power Removable main battery 5200mAh, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Notification Sound, LED indicator, vibrator
Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces USB Type-C, USB 3.1, OTG, extended thimble
Audio 2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad 1 power key, 2 scan keys, 2 volume keys
Sensors Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLAN Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
WWAN (Europe, Asia) 2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America) 2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth Bluetooth 5.1
Vo-LTE Support Vo-LTE HD video voice call
GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System Android 11 / 13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU Octa-core, 2.0GHz
RAM+ROM 3GB + 32GB / 4GB + 64GB
Expansion Supports up to 256 GB Micro SD (TF) card
User Environment
Operating Temp. -4oF to 122oF / -20 ℃ to +50 ℃
Storage Temp. -40oF to 158oF / -40 ℃ to +70 ℃
Humidity 5% RH - 95% RH non condensing
Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner Zebra: SE4710/SE2100; Honeywell: N6603/6803FR; E3200; IA166S; CM60
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note *This function is optional

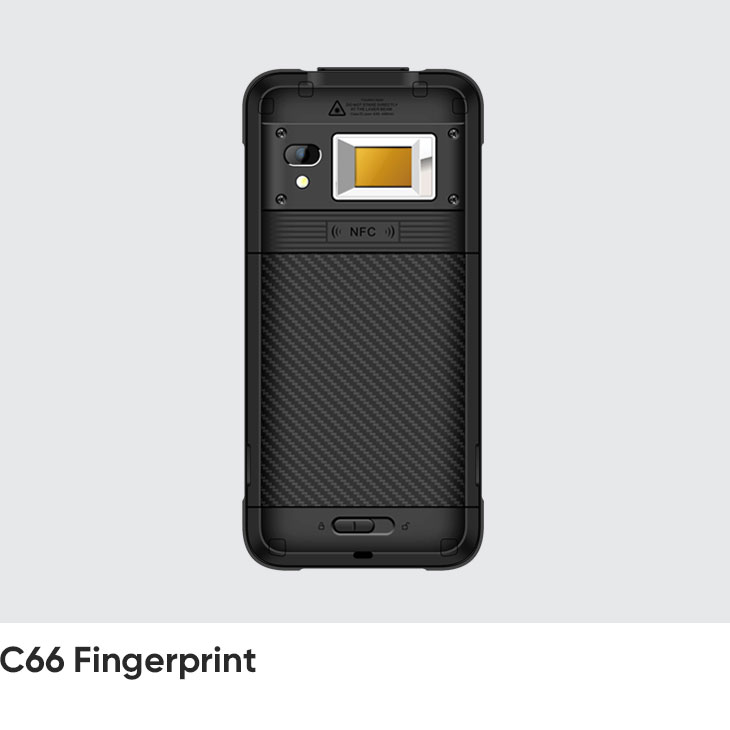

Fingerprint 1
Sensor TCS1
Sensing Area (mm) 12.8 × 18.0
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note *This function is optional
Fingerprint 2
Sensor TLK1NC02
Sensing Area (mm) 14.0 X 22.0
Resolution (dpi) 508dpi, 256 greylevel
Certifications FIPS 201, FBI
Format Extraction ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note *This function is optional
Camera
Rear Camera 13MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
